Selecting the right filter system

Alle filtercombinaties (1120px breed2)

To determine which filter system is suitable for your vacuum cleaner, the airflow of your vacuum cleaner is crucial. On the product page of your vacuum cleaner, this is generally indicated by one of the following measurements:

– Airflow in the number of liters of air per second.
– Airflow in the number of liters of air per minute.
– Airflow in the number of cubic meters (m³) of air per hour.

The airflow value of your vacuum cleaner should fall between the minimum airflow and the maximum airflow capacity of a filter. Below is an overview of the minimum airflow requirement for each filter and the maximum airflow it can handle:

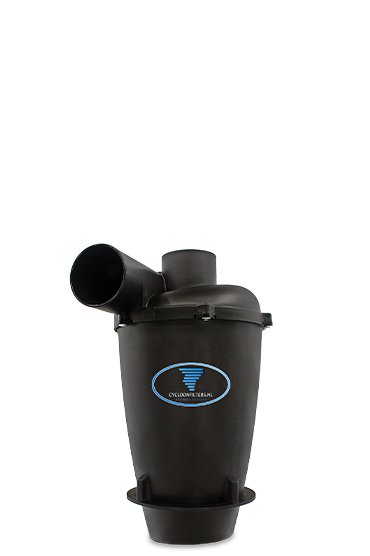

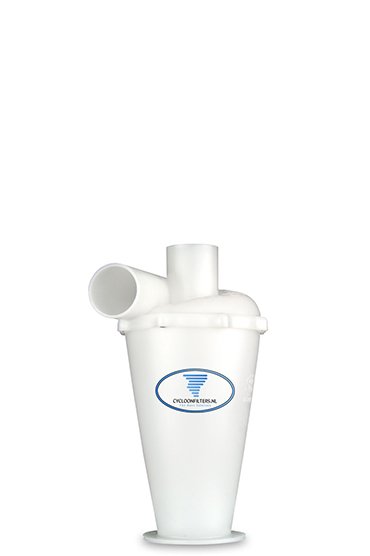

Cyclone filters

Rotate the screen for a wider view.

VersionModel 2Model 3Model LModel XLModel M MetalModel L MetalModel XXL Metal
Filter efficiency95%99%95%95%99,99%99,99%99,99%
Airflow per sec.Min: 28 liter | Max: 67 literMin: 28 liter | Max: 78 literMin: 67 liter | Max: 175 literMin: 167 liter | Max: 333 literMin: 28 liter | Max: 97 literMin: 67 liter | Max: 180 literMin: 222 liter | Max: 667 liter
Airflow per min.Min: 1670 liter | Max: 4000 literMin: 1670 liter | Max: 4667 literMin: 4000 liter | Max: 10500 literMin: 10000 liter | Max: 20000 literMin: 1670 liter | Max: 5833 literMin: 4000 liter | Max: 10833 literMin: 13333 liter | Max: 40000 liter
Airflow per hourMin: 100m³ | Max: 240m³Min: 100m³ | Max: 280m³Min: 240m³ | Max: 630m³Min: 600m³ | Max: 1200m³Min: 100m³ | Max: 350m³Min: 240m³ | Max: 650m³Min: 800m³ | Max: 2400m³
Link

Model 2

Model 3

Model L

Model XL

Model M Metal

Model L Metal

Model XXL Metal

* Click on the link for more information about the respective cyclone filter.

Example

The Bosch AdvancedVac 20 vacuum cleaner can process 70 liters of air per second. Cyclone filter model 3 can handle a minimum of 28 liters and a maximum of 78 liters per second, making it the best choice for this Bosch vacuum cleaner. If materials with abrasive properties, such as stone, glass, and metal debris, are being sucked up, then the metal version is preferable: cyclone filter model M metal. Cyclone filter model 3 and cyclone filter model M metal are suitable for 99% of all (construction) vacuum cleaner. Only very powerful, multi-motor construction vacuum cleaners and central extraction systems require a larger filter, such as cyclone filter model L, model XL, and model XXL metal. If you’re unsure about the airflow capacity of your vacuum, you can also consider the inner diameter of the vacuum hose. If the inner diameter falls between 27mm and 40mm, then cyclone filter model 3 and cyclone filter model M metal are generally compatible.

Filter systems

Rotate the screen for a wider view.

Version3-30K3-60K3-32M3-60ML-60MXL-60MM-32M MetalM-60M MetalL-60M MetalXXL-60M Metal
Tabel-combinaties-3-60KTabel-combinaties-3-32MTabel-combinaties-3-60MTabel-combinaties-L-60MTabel-combinaties-XL-60MTabel-combinaties-M-32M-MetaalTabel-combinaties-M-60M-MetaalTabel-combinaties-L-60M-MetaalTabel-combinaties-XXL-60M-Metaal
Filter efficiency99% max99% max99% max99% max95% max95% max99,99% max99,99% max99,99% max99,99% max
Airflow min1670 liter/min. (100m³/h)1670 liter/min. (100m³/h)1670 liter/min. (100m³/h)1670 liter/min. (100m³/h)4000 liter/min. (240m³/h)10000 liter/min. (600m³/h)1670 liter/min. (100m³/h)10000 liter/min. (600m³/h)4000 liter/min. (240m³/h)13333 liter/min. (800m³/h)
Airflow max4667 liter/min. (280m³/h)4667 liter/min. (280m³/h)4667 liter/min. (280m³/h)4667 liter/min. (280m³/h)10500 liter/min. (630m³/h)20000 liter/min. (1200m³/h)5833 liter/min. (350m³/h)5833 liter/min. (350m³/h)10833 liter/min. (650m³/h)40000 liter/min. (2400m³/h)
Inlets inner d.50mm50mm50mm50mm75mm100mm51mm51mm75mm125mm
Dustbin30 liter plastic60 liter plastic32 liter metal60 liter metal60 liter metal60 liter metal32 liter metal60 liter metal60 liter metal60 liter metal
Height820mm905mm615mm860mm940mm1215mm650mm890mm1035mm1190mm
Width300mm400mm400mm400mm400mm400mm400mm400mm400mm400mm
Link

3-30K

3-60K

3-32M

3-60M

L-60M

XL-60M

M-32M Metal

M-60M Metal

L-60M Metal

XXL-60M Metal

Do you have questions about the various filter models and/or filter systems? Most answers can be found on the FAQ page. Do you have other questions? We’re here to assist you. Feel free to reach out to us via our contact page.
