General
This cyclone filter is a dust separator and is ideal for sucking up dust, wood chips, grit etc. in the (home) workshop or, for example, at home during a renovation. Cyclone filter model M-5 works as a pre-separator, filtering up to 99.99% of the dust which therefore does not end up in the vacuum cleaner.
Result:
- Replace far fewer vacuum cleaner bags because almost all the dust ends up in the dustbin;
- Continuous maximum suction power because the vacuum cleaner bag hardly fills up;
- Work longer with the use of a larger dustbin in comparison with a vacuum cleaner bag;
- Longer lifespan of the vacuum cleaner due to less wear and tear on the engine.
Almost all vacuum cleaners can be connected to the filter system: standard household vacuum cleaners, (professional) construction cleaners and extraction systems.
Do you have questions? Most answers can be found on our FAQ page. Can’t find the answer? Please do not hessitate to contact us via our contact page.

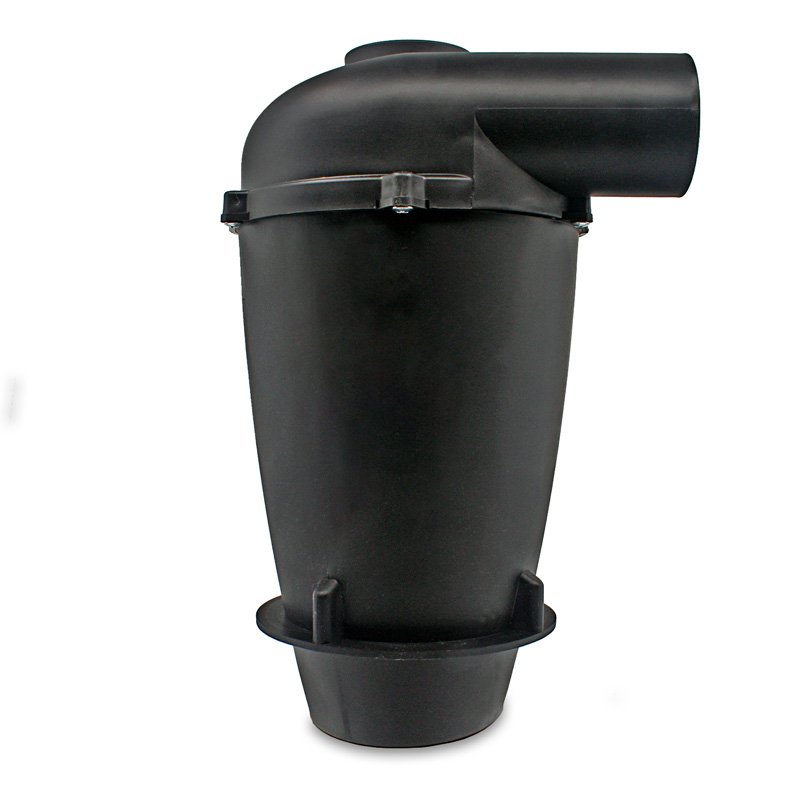

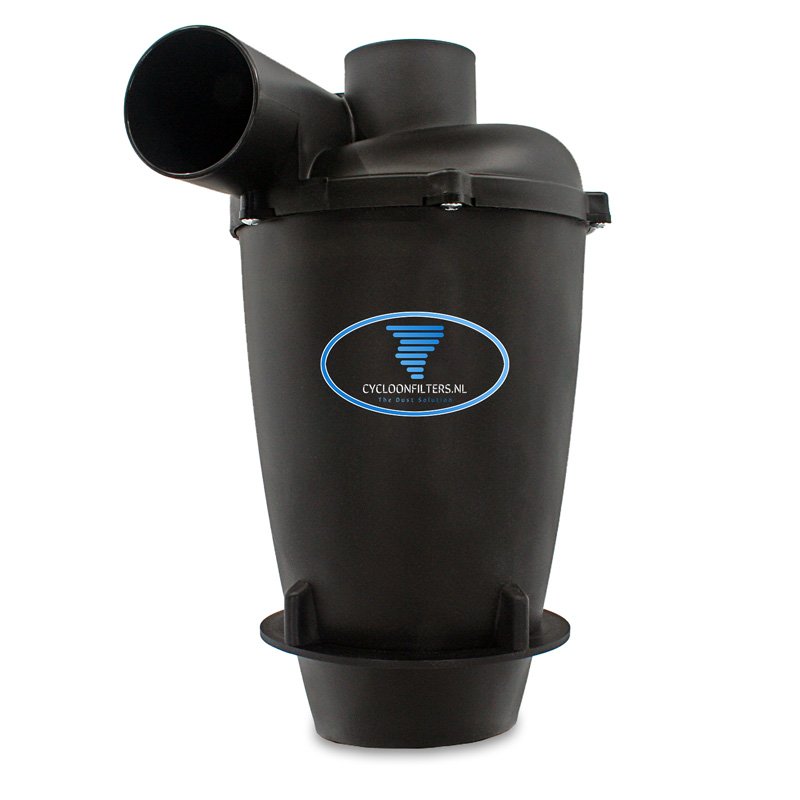

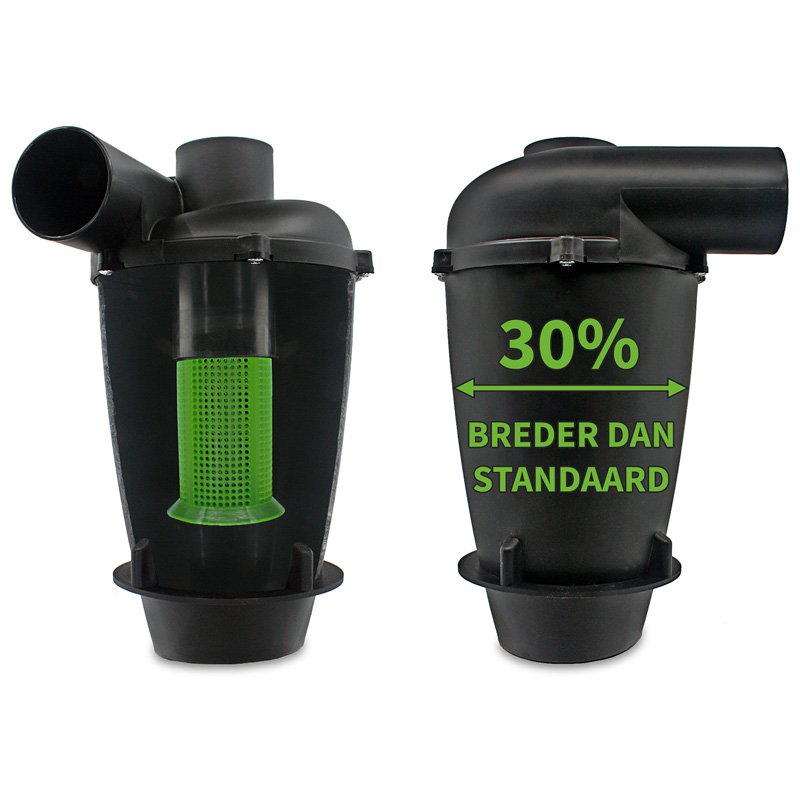

Cyclone filter model M-5 is our newest dust separator. It is made from very strong ABS and is more efficient (99.99%), stronger and quiter than than cyclone filter model M-2, M-3, and M-4. Cyclone filter model M-5 has a downwards rotated side inlet which pulls the dust more effective into the dustbin. Cyclone filter model M-5 has a injected molded base plate which allows for a strong connection onto a dustbin.
Optional:
- Anti-crush pressure valve: The anti-crush pressure relief valve we designed ensures that the vacuum pressure in a dustbin does not become too high, preventing the dustbin from collapsing. This allows dust to be sucked away through small dust ports without crushing the dustbin. Th pressure valve is particularly important for plastic dustbins and metal dustbins with thin walls.
To be used with dust extraction:
- Sander;
- Table saw;
- Sand blast cabinet;
- Router;
- Mitre saw;
- Wall and floor grinder;
- CNC router;
- Vacuuming of (construction) floors;
- And many other applications.
Specifications:
- Filters up to 99.99%;
- Minimum air flow: 1670 liters per minute (100m3/h);
- Maximum air flow: 4667 liters per minute (280m3/h);

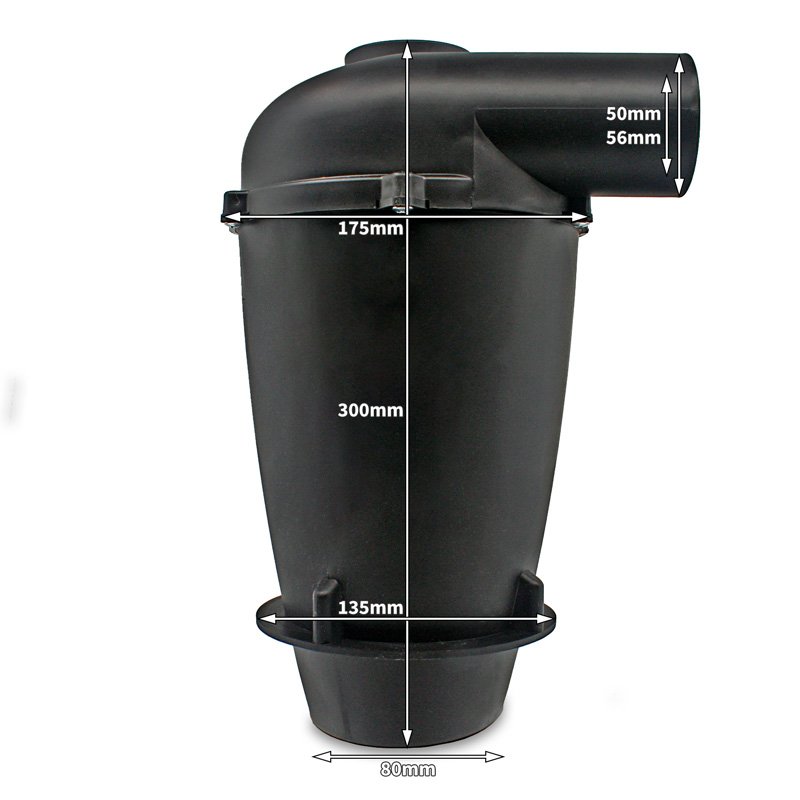

- Inlet and outlet inner diameter: 50mm;
- Inlet and outlet outer diameter: 56mm;
- Material: ABS;
- Weight: 430 gram.

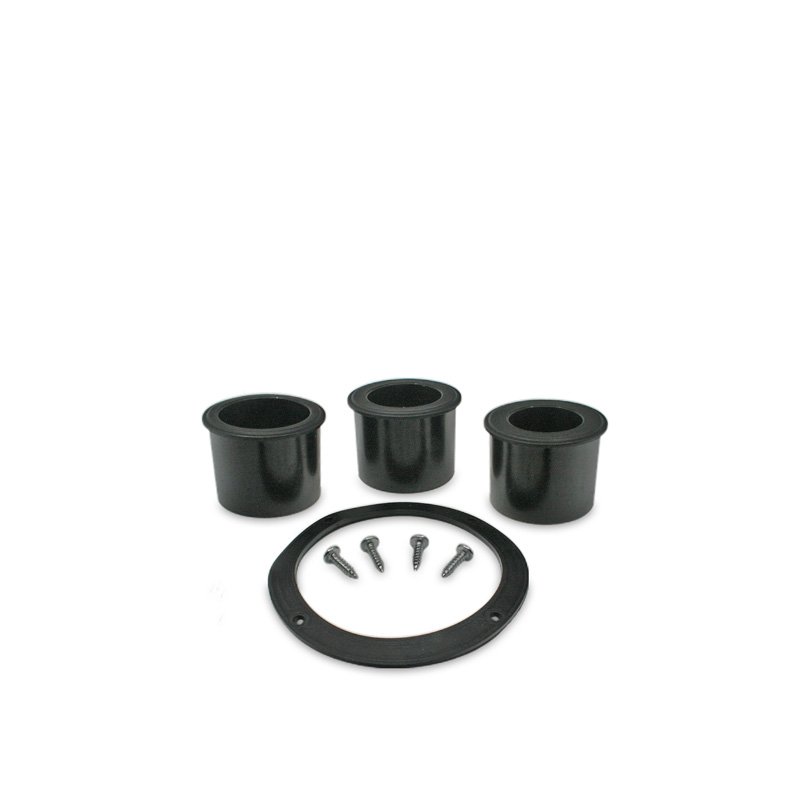

Content:
- Cyclone filter model M-5;
- Rubber gasket;

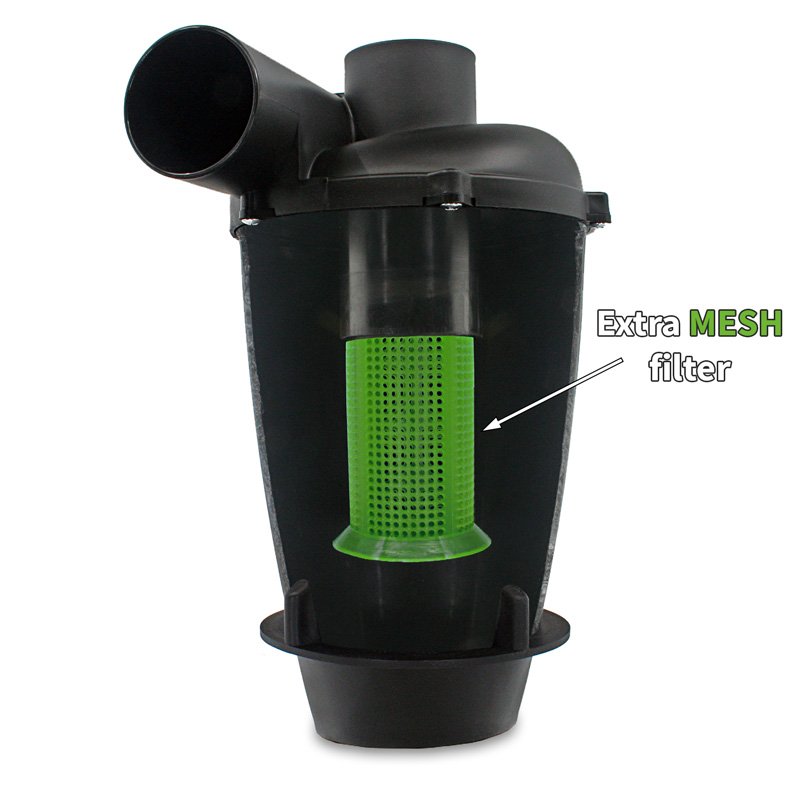

- MESH filter (black);

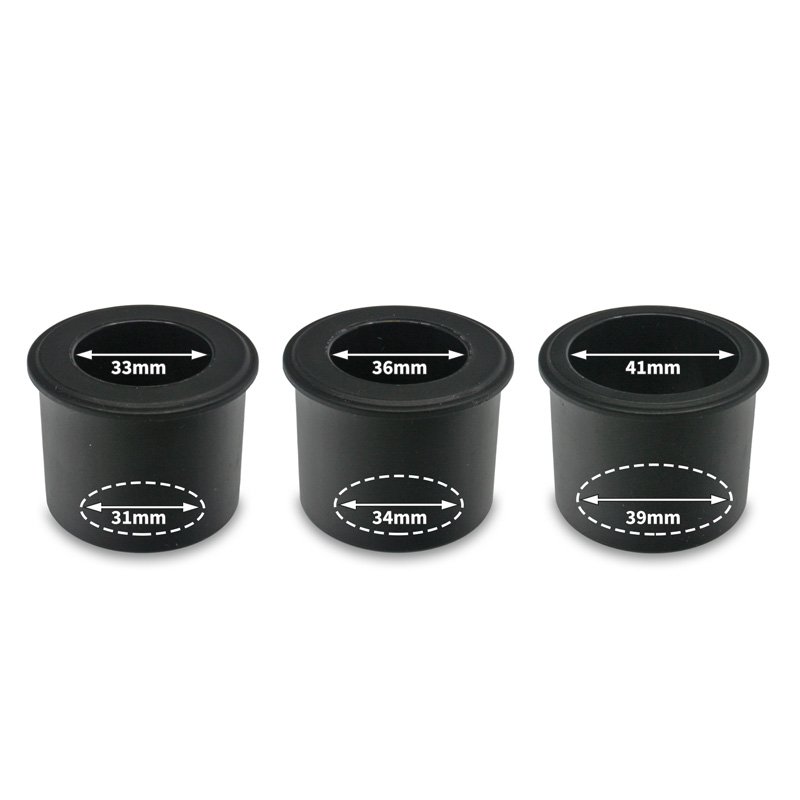

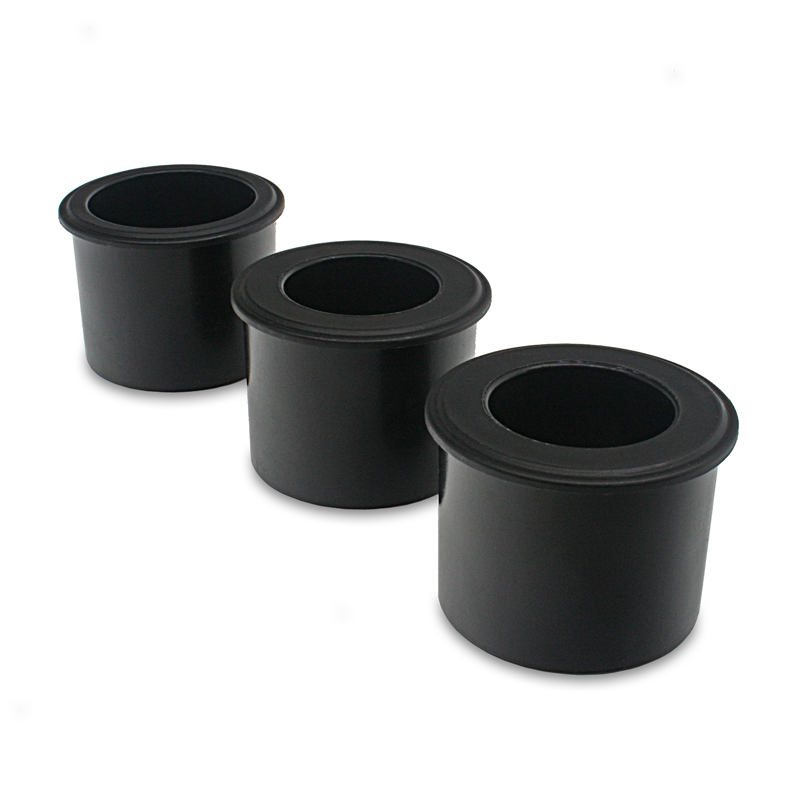

- 3 plastic reducers:
- 50mm>33-31mm
- 50mm>36-34mm
- 50mm>41-39mm
- Fasteners.
