Description
Backorder: Cyclone filter model XXL stainless steel is currently out of stock. Would you like to be notified when it’s available again? Fill in the stock notification form above and receive free shipping when it’s back in stock.
Expected Availability: May 2025.

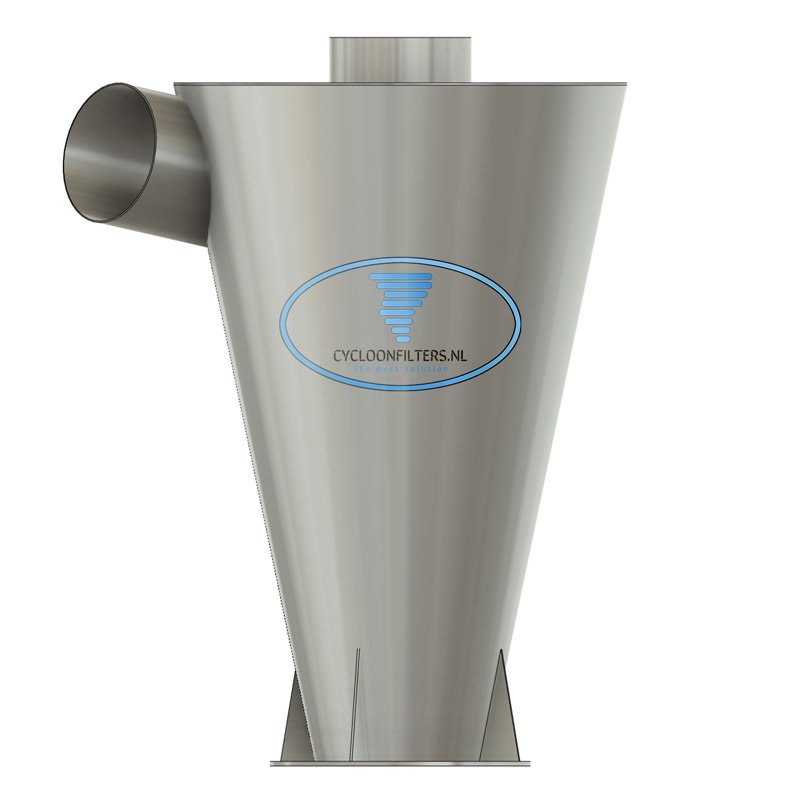

The cyclone filter model XXL stainless steel acts as a pre-separator, capturing up to 99.99% of the dust and preventing it from reaching the vacuum cleaner. Metal cyclone filters are ideal for vacuuming materials with abrasive properties, such as sharp stone debris or glass grit. Plastic filters wear out quickly when used for such tasks. Our stainless steel cyclone filter model XXL is also suitable for filtering dust that may cause rust.
The stainless steel cyclone filter model XXL, with its 125mm inlets, can handle up to 2400m3 of air per hour. This makes it suitable for large workshops that use a central extraction system.
Result:
- Replace far fewer vacuum cleaner bags because almost all the dust ends up in the dustbin;
- Continuous maximum suction power, as the vacuum cleaner bag hardly fills up;
- Longer working times due to the larger collection bin compared to vacuum cleaner bags;
- Longer life of the vacuum cleaner due to less wear and tear on the vacuum motor.
Since the cyclone filter model XXL stainless steel has large inlets (125mm), it is only suitable for central extraction systems. Check the Information tab → Selection Guide → Cyclone Filter to determine which filter is compatible with your vacuum/extraction system.
Do you have a question about the stainless steel cyclone filter model XXL? Most answers can be found on the ‘Frequently Asked Questions’ page. If your question is not listed, we are happy to assist you. Please contact us via our contact page.
The new stainless steel cyclone filter model XXL is our biggest cyclone filter. The ideal cyclone filter for bigger workshops. The inner diameter of the inlets are 125mm, making them suitable for common large-sized central vacuum systems. The filter comes with a rubber gasket for an airtight connection to a dustbin. Filter systems without a rubber gasket carry the risk of air being sucked in through small gaps, causing loss of suction power and reduced filter performance. We supply a NBR rubber gasket with all our filters. Foam or cork sealing rings deteriorate over time.
Food-Grade stainless steel:
The cyclone filter model XXL stainless steel is made from high quality 304 stainless steel, making it suitable for use in the food industry.
Highest quality:
- Filters up to 99.99% of dust (compared to 99% for other filters on the market);
- Made from food-safe high quality 304 stainless steel;
- Made from industrial-grade steel, 1.25mm thick (instead of 0.7mm sheet metal);
- Equipped with a NBR rubber gasket, which does not degrade over time (unlike foam or cork rings).
Useful for dust extraction with:
- Sanding machine;
- Saw table;
- Blasting cabinet;
- Router;
- Mitre saw;
- Cleaning (construction) floors;
- And many other applications.
Specifications:
- Filters up to 99,99%;
- Minimum air flow: 13333 liter per minute (800m3/h);
- Maximum air flow: 40000 liter per minute (2400m3/h);
- Inlet and outlet inner diameter: 122.5mm;
- Inlet and outlet outer diameter: 125mm;
- Material: 304 stainless steel (food-grade);
- Colour: stainless steel matt polished (flange is black);
- Weight: 11 kilograms;
- Suitable for: large central vacuum systems.
Contents:
- Cyclone filter model XXL stainless steel;
- Rubber gasket;
- Fastners stainless steel.
Details:
- To ground the stainless steel cyclone filter model XXL, a small amount of the black coating on the flange must be removed to allow the metal to make good contact with the dustbin and/or grounding cable.
- Measure the entire system before it is put into use to ensure that all parts have a conductive connection with each other and with the grounding of the workspace.
Do you have any questions? Most answers can be found on our frequently asked questions page. If your question is not listed there, we are happy to assist you further. Please contact us via our contact page.
